Winston Skid Steer Equipment Trailers are available in 6, 7 and 8 Ton Tandem Axle models. These Low Profile, deck between the fenders tagalong trailers are designed to haul all types or construction and farm equipment. These pan style trailers feature a low profile design for east loading and unloading of Skid Steers and attachments. Deck frame is 4 x 6' angle with a full wrap tongue. The 6 ton comes with a bolt on 7,000 lb drop leg Jack while the 7 Ton model comes it an 8' Tongue and a 12K Spring Assist dropleg Jack. An Oak floor supports small wheel equipment better than pine. Heavy Duty Ramps are 5' Spring Assist and are adjustable. Superior strength fenders are formed from thicker 1/8" tread plate designed specifically for these trailers. Up front is a 5 position hitch plate for pintle hitch or optional 2 5/16" ball coupler.
Suspension Difference: Winston Trailers Tandem Suspension is different from other manufactures. Winston only uses high quality slipper type suspensions with multi-leaf springs. Many years ago we found that stronger springs could prevent a substantial amount of axle and component damage. We use (2) 5 leaf slipper springs per 6,000 lb axle with a stronger 3500 lb rating ea. Subsequently we use (2) 7 leaf slipper springs per 7,000 lb axle with a 4000 lb rating ea. By doing these little things we provide our customers with a stronger undercarriage with less maintenance over time of ownership.

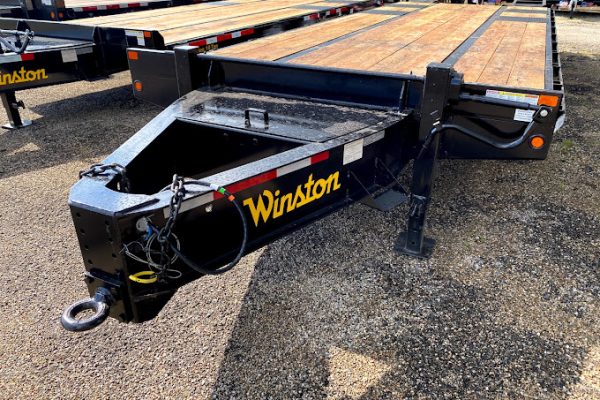

5 position Adjustable Pintle Hitch
|
Breakaway Kit with Charger
|
Wrap Around Tongue
|
33" Spread HD Equalized Slipper Suspension
|
Storage Area in Tongue
|
8 Lug Stud Piloted Single Mod Type Wheels
|
Bolt on Jack
|
Spring Assist Ramps
|
Oak Floor Staggered Where Joined
|
Stake pocket Downs
|
Heavy 1/8" Tread Plate Rental Fender
|
Lifetime LED Lighting
|
Dexter Axles EZ Lube Axles
|
PPG Epoxy Primer
|
Electric Brakes on All Axles
|
PPG Modified Alkyd Enamel
|
|
6 Ton - BP2618E |
7 Ton - BP2718E |
Axle Config |
Tandem |
Tandem |
GVWR* |
13,850 |
16,100 |
Trailer Weight |
16'/3420, 18'/3640, 20'/3855 |
16'/3540, 18'/3760, 20'/3975 |
Deck Length |
16', 18', 20' |
16', 18', 20' |
Deck Width |
81" Pan, 81 ¾ Between Fenders |
81" Pan, 81 ¾ Between Fenders |
Deck Height Approx. |
22" |
22" |
Tongue Size |
6" Channel |
8" Channel |
Jack |
7,000 lb Bolt on Dropleg |
12,000 lb Bolt on Dropleg |
Axles |
(2) 6,000 Lb EZ Lube |
(2) 7,000 Lb EZ Lube |
Suspension Springs |
2" Wide 5 Leaf, 3500 lb ea. |
2" Wide 7 Leaf, HD 4000 lb ea. |
Tires |
ST235/80R16 E |
ST235/80R16 E |
Tie-Downs |
3" Stakepockects |
3" Stakepockects |
Spring Assist Ramps |
20 x 60" Ladder Style |
20.5 x 60" Ladder Style |
*Maximum GVWR with Weight Distributed Evenly, Not to Exceed Ratings of Components or Tow Vehicle.
Never Exceed Tow Vehicle's Towing or Load Specifications. Federal, State, and Local Restrictions may apply to Dimensions and Capacities.
In accordance with our established policy of constant improvement, WTM. Inc. reserves the right to amend these specifications without notice.
